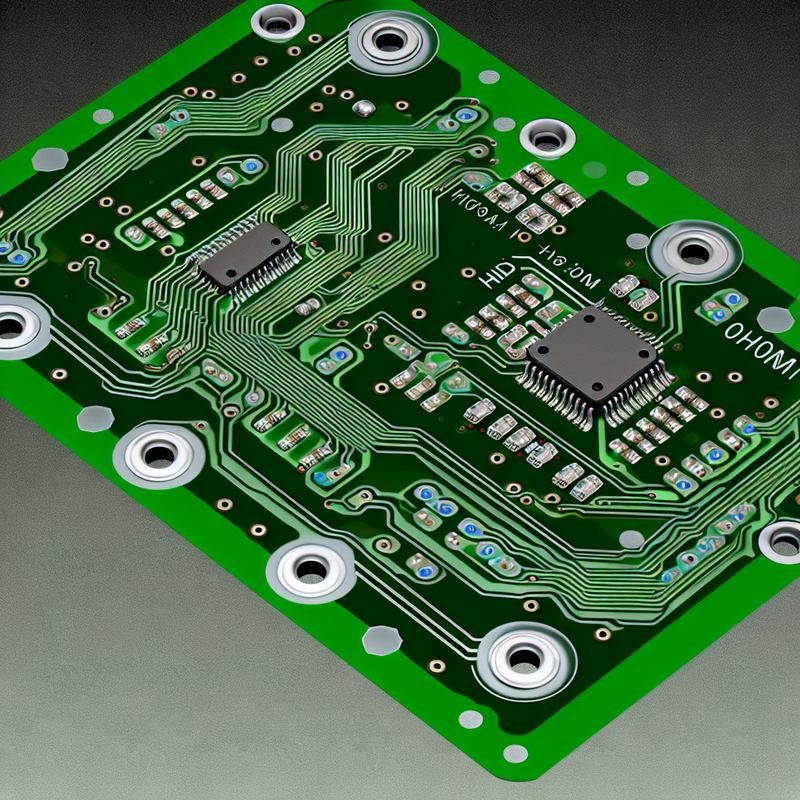

HDI PCB Board for Automotive Electronics 0.04mm Line Width

Product Details

Place of Origin: China

Brand Name: Kingtech

Certification: GJB9001C, ISO13485, ISO9001, IS045001,IATF16949, UL, ISO14001, AS9100D, QC080000

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: By quote

Packaging Details: Vacuum packing

Delivery Time: 2-7days

Payment Terms: By quote

Supply Ability: 500000 SQM per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          HDI PCB board for automotive electronics, HDI PCB board with 0.04mm line width, automotive HDI PCB board


Certifications:	GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000	Product Category:	HDI PCB Board
BGA Pitch:	0.3mm	Impedance Control:	±8%
Board Thickness:	0.2-3.2mm	Misalignment Of Layers:	+/- 0.06
Min. Line Widthe/space:	0.04mm/0.04mm

Certifications:	GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000
Product Category:	HDI PCB Board
BGA Pitch:	0.3mm
Impedance Control:	±8%
Board Thickness:	0.2-3.2mm
Misalignment Of Layers:	+/- 0.06
Min. Line Widthe/space:	0.04mm/0.04mm

Description

HDI PCB Board for Automotive Electronics 0.04mm Line Width

Professional HDI Printed Circuit Boards for Automotive Electronics Min. Line Width/space 0.04mm/0.04mm

Product Specifications

Attribute	Value
Certifications	GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000
Product Category	HDI PCB Board
BGA Pitch	0.3mm
Impedance Control	±8%
Board Thickness	0.2-3.2mm
Misalignment Of Layers	+/- 0.06
Min. Line Width/space	0.04mm/0.04mm

Product Overview

Our high-quality HDI Printed Circuit Boards are designed to meet the demanding requirements of modern electronics applications. These HDI PCB boards offer unmatched performance and reliability, making them the ideal choice for a wide range of industries.

Engineered with precision and expertise, our HDI Printed Circuit Boards feature a Blind Hole Aspect Ratio of 1:1 to ensure optimal signal integrity and reliability. This advanced design allows for efficient routing of signals in complex circuit configurations, making them perfect for high-density applications.

With a Misalignment Of Layers of just +/- 0.06, our HDI PCB boards guarantee exceptional accuracy and consistency in layer alignment, resulting in superior electrical performance and reliability.

Key Features

Product Name: HDI PCB Board
Misalignment Of Layers: +/- 0.06
Min. Mechanical Drill Hole Size: 0.1mm
Min. Laser Drill Hole Size: 0.07mm
Vias Aspect Ratio: 16:1
Support Services: Remote assistance, online support, phone support, on-site training, installation services, user guides, tutorials

Technical Parameters

Max. Board size: 540*620

Minimum Order Quantity: 1pcs

Customization Available: Yes

Min. Core Thickness: 0.05

Applications

Our HDI PCB boards are suitable for various applications including industrial PC motherboards, computer circuit boards, HDI consumer electronics, HDI medical devices, and HDI automotive electronics. Their high performance, reliability, and compact design make them the perfect choice for demanding applications in these industries.

Support & Services

Our comprehensive support includes:

Expert technical support for troubleshooting
Assistance with product installation and setup
Software updates and firmware upgrades
Comprehensive training and resources
24/7 technical support availability

Packaging & Shipping

Each HDI PCB board is placed in an anti-static bag and secured in a sturdy cardboard box with ample padding to prevent any damage during transit. We offer reliable shipping services with tracking available.

Delivery time: 2-7 days

Packaging: Vacuum packing

Frequently Asked Questions

What is the brand name of the HDI PCB Board?

The brand name of the HDI PCB Board is Kingtech.

Where is the HDI PCB Board manufactured?

The HDI PCB Board is manufactured in China.

What certifications does the HDI PCB Board have?

The HDI PCB Board is certified with GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000.

What is the minimum order quantity for the HDI PCB Board?

The minimum order quantity for the HDI PCB Board is 1 piece.
