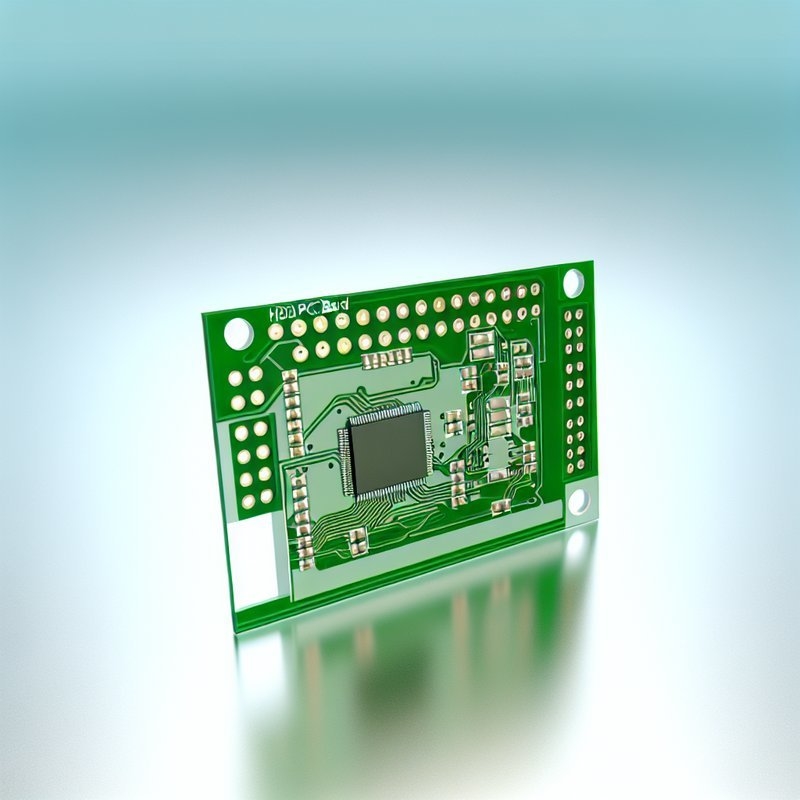

HDI PCB Board 0.1mm Mechanical Drill 0.3mm BGA Pitch

The HDI PCB Board is an advanced 8 Layer PCB Board designed for high-density interconnect applications. These HDI Printed Circuit Boards are ideal for use in various electronic devices, including Computer Circuit Boards, where space is limited and performance is crucial.

With a minimum Mechanical Drill Hole size of 0.1mm, this HDI PCB Board offers exceptional precision and accuracy in drilling holes for components placement. The Board Thickness ranges from 0.2mm to 3.2mm, providing flexibility in design and application requirements.

The Misalignment Of Layers is kept to a minimum, with a tolerance of +/- 0.06, ensuring that the different layers of the PCB align perfectly for optimal performance. Additionally, the BGA Pitch of 0.3mm allows for high-density component mounting, making this HDI PCB Board suitable for complex electronic designs.

When it comes to packaging, the HDI PCB Board is carefully packaged in vacuum packing to protect it from environmental elements and ensure its safe transportation and storage.

• Product Name: HDI PCB Board
• BGA Pitch: 0.3mm
• Max. Board size: 540*620
• Certification: GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000
• Min. Core Thickness: 0.05
• Min. Laser Drill Hole size: 0.07mm

Kingtech HDI PCB Boards, originating from China, are highly versatile and reliable products that cater to a wide range of applications in the electronics industry. With certifications including GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, and QC080000, these PCB boards ensure top-notch quality and performance.

The minimum order quantity for Kingtech HDI PCB Boards is just 1 piece, making it accessible for various projects and prototypes. The pricing is determined by quote, offering flexibility based on specific requirements. Each board is meticulously packaged using vacuum packing to guarantee safe delivery.

With a quick delivery time of 2-7 days and flexible payment terms based on quotes, customers can rely on Kingtech for efficient and convenient service. The supply ability of 500,000 SQM per month ensures a steady availability of these high-quality PCB boards.

Featuring a board thickness ranging from 0.2mm to 3.2mm and a minimum core thickness of 0.05mm, Kingtech HDI PCB Boards are suitable for various applications, especially in HDI Consumer Electronics and HDI Printed Circuit Boards. Whether it's for a 55 Inch Smart Board, Electronics PCB Design, or an 85 Inch Smart Board, these boards provide the reliability and performance required for modern electronic devices.

• Expert technical support for installation, troubleshooting, and maintenance.
• Comprehensive training programs for users and technicians.
• Regular software updates and patches to ensure optimal performance.
• Product warranty and repair services in case of any issues or defects.
• Online resources and documentation for self-help and troubleshooting.

Product Packaging:
The HDI PCB Boards are carefully packaged in anti-static bags to prevent any damage from static electricity. They are then placed in sturdy cardboard boxes with ample padding to ensure safe transportation.

Shipping:
We ship the HDI PCB Boards using trusted carriers to ensure timely and safe delivery. Each package is labeled with the necessary shipping information and handled with care to prevent any damage during transit.
