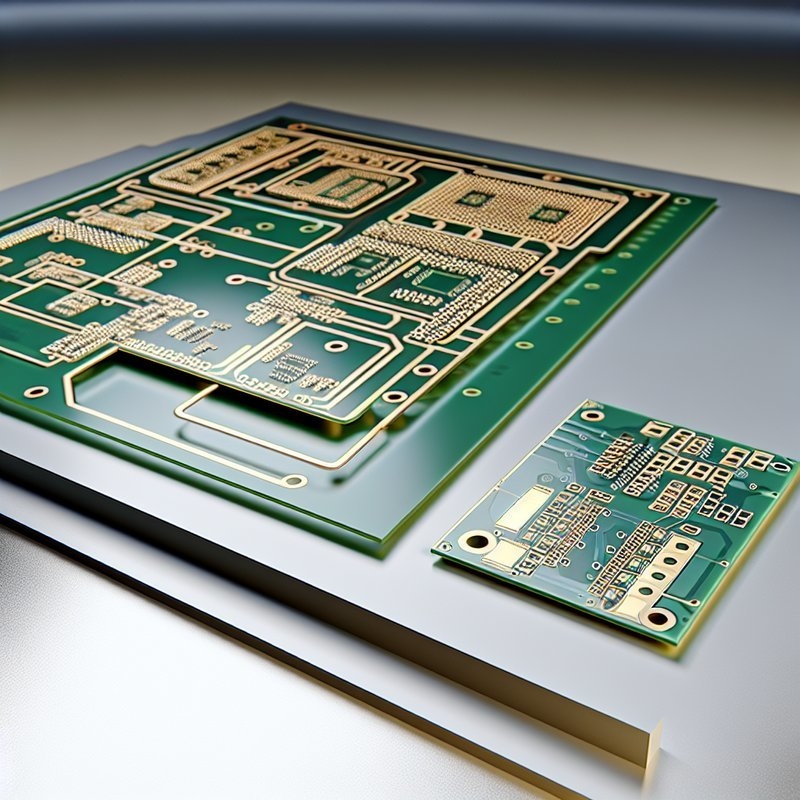

HDI PCB Board 0.3mm BGA Pitch 16:1 Aspect Ratio UL Certified

HDI Printed Circuit Boards are the perfect choice for consumer electronics applications. With a minimum core thickness of 0.05mm, a maximum board size of 540mm x 620mm, and minimum line width/space of 0.04mm/0.04mm, these HDI Printed Circuit Boards offer superior performance and quality. The minimum mechanical drill hole size is 0.1mm, and copper thickness can range from 1/3-8. HDI Printed Circuit Boards are the ideal solution for high-performance consumer electronics, and their manufacturing process is unmatched in the industry.

• Product Name: HDI
• Vias Aspect Ratio: 16:1
• Min. Line width/space: 0.04mm/0.04mm
• Min. Mechanical Drill Hole size: 0.1mm
• BGA Pitch: 0.3mm
• Min. Laser Drill Hole size: 0.07mm
• Mainly used in: HDI Consumer Electronics, HDI Printed Circuit Boards

Kingtech HDI Printed Circuit Boards (PCBs) are a leading choice for consumer electronics manufacturers for their excellent electrical performance and superior quality. With certification from GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000, Kingtech is a leading HDI PCB manufacturer.

Our HDI PCBs feature copper thickness from 1/3-8, impedance control of ±8%, maximum board size of 540*620, and misalignment of layers of +/- 0.06. In addition, our HDI PCBs have a minimum line width/space of 0.04mm/0.04mm.

With a minimum order quantity of just 1 piece and competitive pricing, Kingtech HDI PCBs are an affordable choice for consumer electronics manufacturers. We can deliver your order within 2-7 days and have the capacity to supply up to 500,000 SQM per month. Every HDI PCB is vacuum packed to ensure its safe arrival.

Kingtech provides custom-made HDI Printed Circuit Boards (HDI PCB Board) for industrial production purposes. Our HDI PCB Board is designed to meet the highest standards, with the following features:

• Brand Name: Kingtech
• Place of Origin: China
• Certification: GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000
• Minimum Order Quantity: 1pcs
• Price: By quote
• Packaging Details: Vacuum packing
• Delivery Time: 2-7 days
• Payment Terms: By quote
• Supply Ability: 500000 SQM per month

Kingtech ensures that our HDI PCB Board is of the highest quality, and our team of experts are available to provide advice and assistance to all our customers. We also offer competitive prices and excellent customer service.

HDI offers a comprehensive range of technical support and services to meet the needs of our customers. Our team of experienced engineers and technicians provide support and advice on installation, configuration, troubleshooting, maintenance and upgrades of HDI products.

• 24-hour online technical support
• On-site product installation and maintenance
• Troubleshooting and problem resolution
• On-site product upgrades
• System tuning and optimization
• On-site training and support
• Product documentation and user guides
• Software updates and patches
