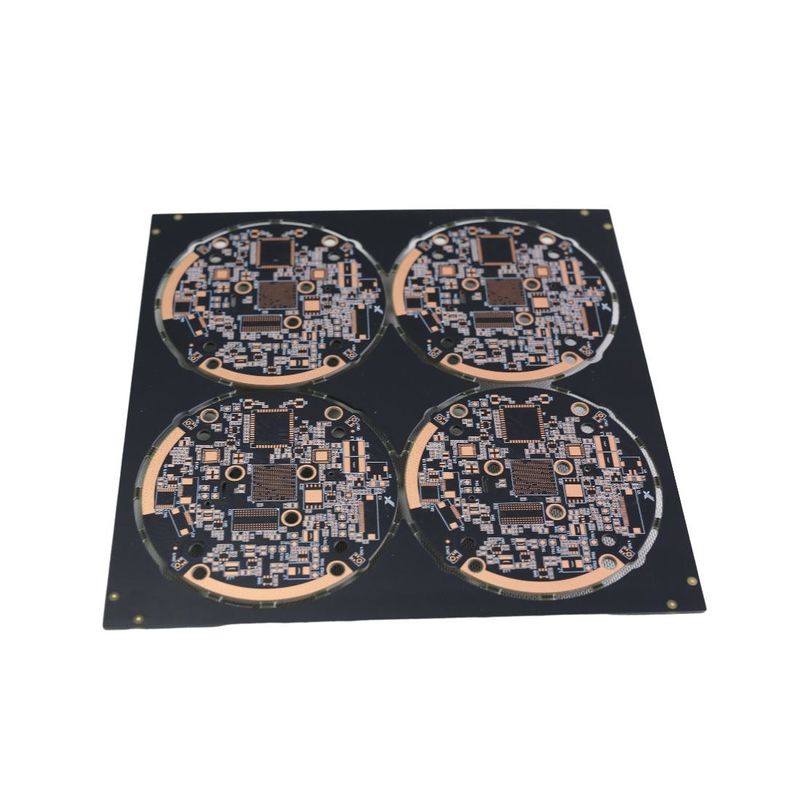

2oz Printed Circuit Board PCB High Density Interconnect Custom

High-Density Interconnect HDI Board With 0.3mm BGA Pitch And 1 1 Aspect Ratio

Product Description:

HDI is a type of consumer electronics and PCB board used in many modern devices. It is distinguished by its extremely small line widths and spaces, high impedance control, accurate layer misalignment, excellent via aspect ratio, and minimum mechanical drill hole size of 0.1mm. HDI PCB board design is becoming increasingly popular for its superior performance, small size, and high reliability. With HDI technology, PCB boards can be made with extremely small line widths and spaces of 0.04mm, allowing for more components to be included in the same area. It also provides excellent impedance control of ±8%, allowing for superior signal integrity and improved signal transmission. The misalignment of layers is also tightly regulated at ±0.06, which ensures that the PCB board design is of the highest quality. Additionally, the via aspect ratio of 16:1 makes it possible to create vias of extremely small sizes, which is also essential for modern PCB boards. Thanks to HDI consumer electronics and HDI PCB board design, manufacturers can now create smaller and more efficient devices with improved reliability.

Features:

• Product Name: HDI
• Min. Laser Drill Hole size: 0.07mm
• BGA Pitch: 0.3mm
• Min. Mechanical Drill Hole size : 0.1mm
• Blind Hole Aspect Ratio: 1:1
• Min. Core Thickness: 0.05
• Suitable for High-density Interconnect (HDI) consumer electronics and printed circuit boards (PCBs)
• HDI PCB Board: Capable of creating a variety of different types of holes and lines

Technical Parameters:

Applications:

Kingtech HDI Printed Circuit Boards are widely used in a variety of applications and scenarios. Our PCBs are certified with GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000, and each order has a minimum quantity of 1pcs. The price and payment terms are given by quote. Vacuum packing is also available for delivery. We can guarantee 2-7days delivery time and 500000 SQM per month production capacity. Our Blind Hole Aspect Ratio is 1:1 and Impedance Control is ±8%. Besides, the Min. Mechanical Drill Hole size is 0.1mm and the Min. Laser Drill Hole size is 0.07mm. The Copper thickness is 1/3-8. Kingtech HDI PCB Board Manufacturers provide excellent service and superior quality HDI PCB Board with competitive price.

Customization:

Kingtech is a leading provider of HDI PCB boards in China. Our HDI printed circuit boards are designed for consumer electronics products. Our boards are certified to GJB9001C, ISO13485, ISO9001, IS045001, IATF16949, UL, ISO14001, AS9100D, QC080000 standards.

• Minimum Order Quantity: 1pcs
• Price: By quote
• Packaging Details: Vacuum packing
• Delivery Time: 2-7days
• Payment Terms: By quote
• Supply Ability: 500000 SQM per month
• Blind Hole Aspect Ratio: 1:1
• Copper thickness: 1/3-8
• Min. Mechanical Drill Hole size : 0.1mm
• Max. Board size : 540*620
• Min. Line widthe/space: 0.04mm/ 0.04mm

Kingtech HDI Printed Circuit Boards are widely used in consumer electronics and have high reliability and excellent performance. Contact us today to learn more about our HDI Printed Circuit Boards and to get a quote!
